In the Box
Atlas 2, Mount, Carrying case
Atlas 2

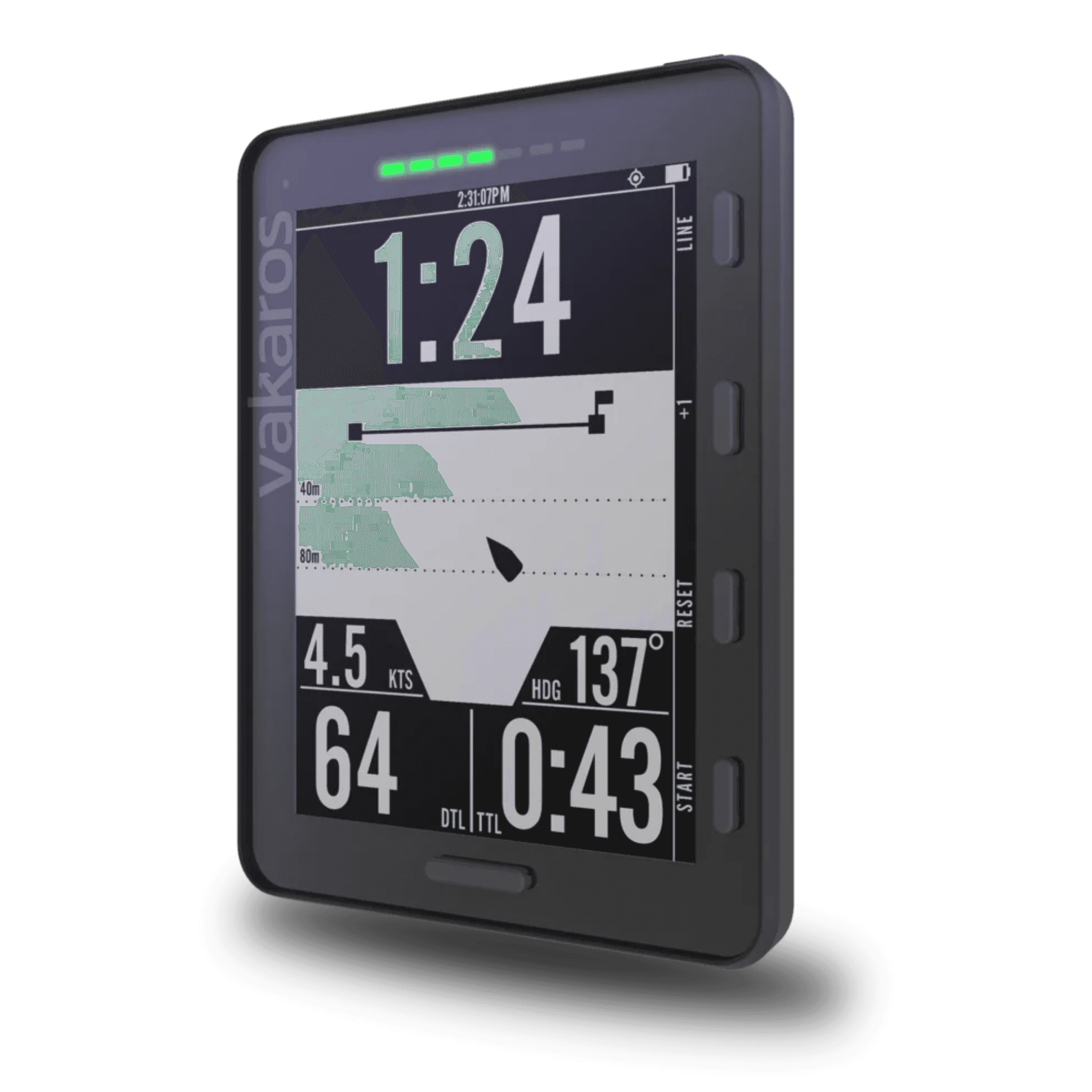

Vakaros Atlas 2
Atlas 2 is the first sailing instrument capable of dual band, L1 + L5 GNSS reception. Measure positional accuracy in centimeters, only on the Atlas 2.
Starting at $1,249.00 · Tax included
Warranty
Optional Vakaros Care at $200.00.
Rental
Event rentals start at $35.00 with sail number capture.
Support
User manual and setup resources are available at support.vakaros.com.
Tech Specs
Sensors
GNSS
25Hz L1 + L5 dual-band multi-constellation receiver
Motion
3-axis gyroscope and 3-axis accelerometer
Direction
3-axis magnetometer
Environmental
Ambient light and temperature sensors
Core Measurements
Position + Velocity
High-frequency race telemetry
Heading / Heel / Pitch
Derived from stabilized fusion stack
Data Logging
10Hz internal logging support
Display
Screen
4.4 inch transflective LCD, 320x240, 91ppi
Visibility
Sunlight-readable with 160 degree viewing cone
Lens
Optically bonded Gorilla Glass with AR + hydrophobic coating
Battery + Storage
Runtime
100+ hours typical usage
Charging
Qi-compatible wireless charging
Storage
256MB integrated storage for onboard logs
Functions
Starting
Distance-to-line, time-to-line, time-to-burn
Race Tools
Countdown timer, shift tracking, stripchart, VMG
